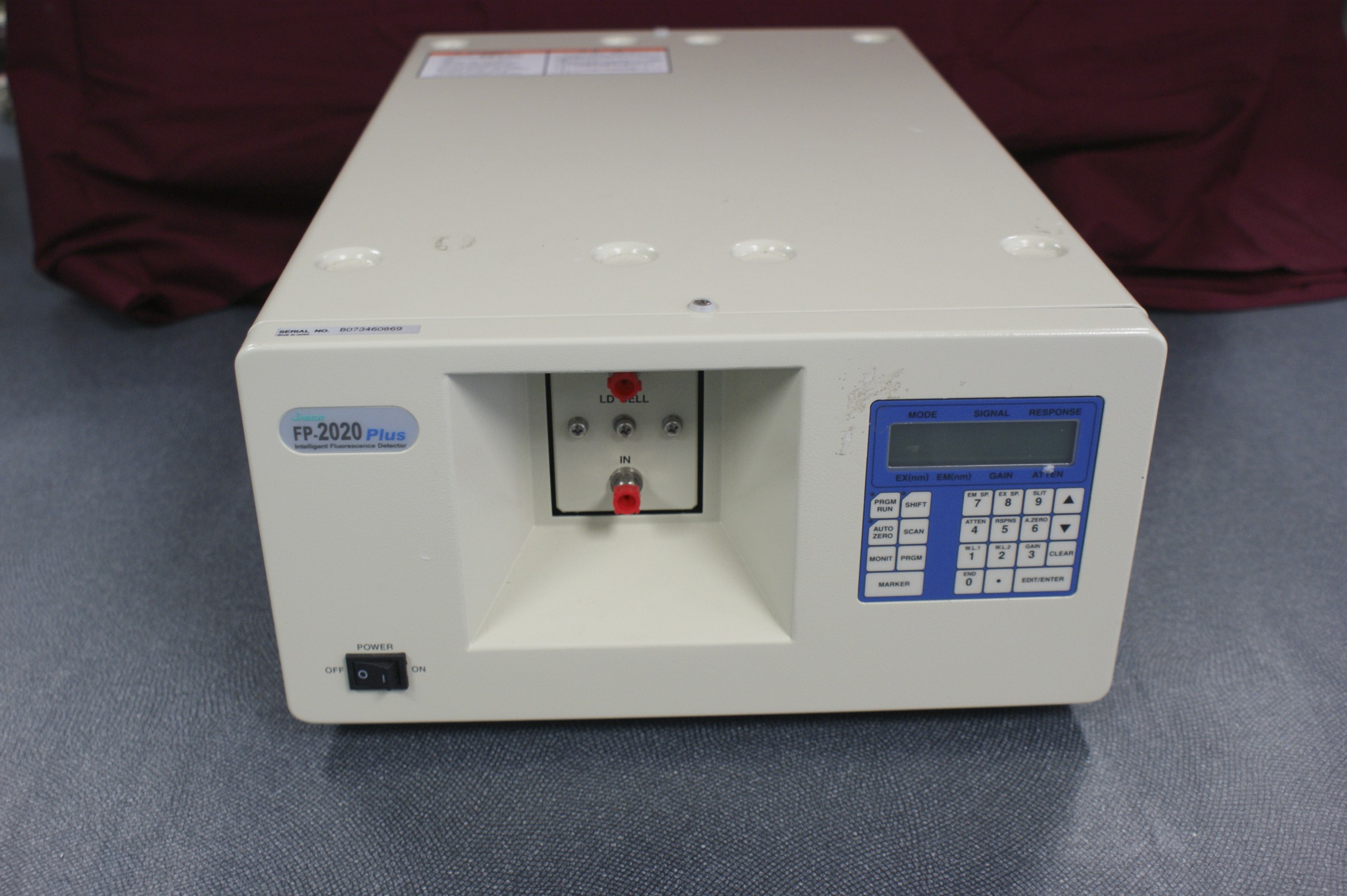

Jasco FP-2020 Plus Intelligent Fluorescence Detector Jasco Fluorescence Detector Jasco FP2020 Plus Intelligent Fluorescence D

HPLC Detectors - Conductivity, Diode Array, Evaporative Light Scattering, Fluorescence, Refractive Index, UV-Vis >> Jasco FP-2020 Plus Intelligent Fluorescence Detector Jasco Fluorescence Detector Jasco FP2020 Plus Intelligent Fluorescence Detector used

Jasco FP-2020 Plus Intelligent Fluorescence Detector Jasco Fluorescence Detector Jasco FP2020 Plus Intelligent Fluorescence Detector used
nice

SPECIFICATIONS

Optical System

Monochromators: Holographic concave diffraction grating

monochromators for both excitation and

emission

Light source: 150W Xe lamp

Settable wavelength: Zero order, 200 ~ 900 nm for both Ex and Em

Measuring wavelength

Range: Zero order, 220 ~ 700 nm for both Ex and Em

Optional PM tube extends the range up to 900

nm.

Spectral bandwidths: Ex: 18 nm fixed

Em: 18, 40 nm selectable

Wavelength accuracy: ±2.0 nm

Wavelength repeatability: ±0.3 nm

Detectors: Ex: photodiode

Em: photomultiplier

Cell volume: 16 μl (standard)

Control System

Sensitivity: S/N ≥350 for Raman peak of water

(Ex=350 nm, time constant=1.5 sec, with

standard cell)

Sensitivity range: 1, 2, 4, 8, 16, 32, 64, 128, 256 and S.

Gain: x1. x10, x100, x1000

Response: FAST, STD, SLOW (0.5, 1.5, 5 sec.)

Digital filter: 3, 5, 10, 20, 40 sec

Signal processing: Digital processing by A/D and D/A converters

Output: 10 mV/FS for recorder (Polarity change is

possible.)

1 V/FS for integrator marker, leak out

Input: marker, autozero, program reset/run

Self-diagnostics: memories, DC power supply, Ex. energy, leak

in cell, lamp operation time

This Jasco FP-2020 Intelligent Fluorescence Detector-

Secifications located-
• Light source: 150W Xe Lamp
• Wavelength accuracy: ±2.0 nm
• Cell volume: 16 μL (standard)
• External communication: RS-232C, LC-Net
• Dimension: 300 (W) x 150 (H) x 470 (D) mm
• Power Input voltage: 100-240 VAC, 50/60 Hz
